CSO 990/5 Slitlamp
£1,400.00 (Delivered)
Reference: OMP7460 Age: 3-4 years Location: Cumbria
Thank you for visiting Optical Marketplace today. You are viewing an item that has been successfully sold on our site, and is no longer available. However, if you click any of the links on the left hand side of the page you will visit the live site and see our current listings.
If the item you are looking for is not advertised then please follow us on Twitter and be the first to know when it gets added to our catalogue.
Technical Specification :
Microscope
Type: Galillean converging binocular
Magnification changing sys.: 5 position rotating drum
Eyepiece: 12,5X
Total magnification: 6X - 10X – 16X – 25X – 40X
Real fields of view (mm): 37 - 24 – 14 – 8 – 5,2
Interpupillary adjust (mm): 48,5 – 80
Slit Lamp
Slit Projection: 1X
Slit width (mm): 0-12 continuously variable
Slit length (mm): 12 (1,8 – 12 continuously variable)
Aperture diameter (mm): 12 – 9 – 5 – 1 – 0,2
Filters: Cobalt blue, Red free, heat absorbing
Slit angle: +/- 90° continuous, tabo scale
Swivel range of slit prism: +/- 180° scale for angular difference
Slit vertical angle: 0° - 5° - 10° - 15° - 20°
Travel of instrument base: Zvertical 35mm Xaxis 108mm Yaxis 113mm
Horizontal fine movement: 10mm
Tabletop Dimension: 380mm X 500mm
Chin Rest (included)
Fixation Lamp: micro lamp 18V 26ma red
Vertical movement (mm):71
Light Source
12V 30W Halogen Lamp
Power requirement (included): 110V 220V 240V +/-10 (wide input)
Maximum power consumption: 40W
Standard accessories
Chin rest tissue, spare illumination bulb,

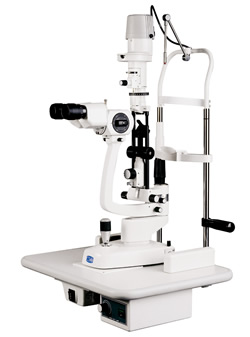

PLEASE NOTE THIS IS A LIBRARY IMAGE
