Elegance refraction stand

£3,995.00

Reference: OMP6357

loading

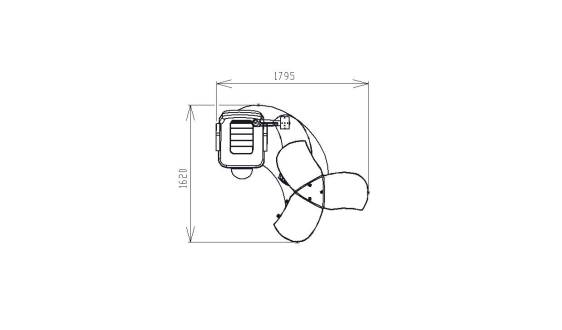

Floorplan

phoropter arm not included in this base price

Refraction unit Elegance

·        Lifting table top for three instruments

·        Lifting chair

·        Powerful lock mechanism of the table enables to fix table top in any position.

·        Column with overhead adjustable halogen lamp and plate for chart projector

·        Integrated transformers for instruments power supply

·        Chin rest support plate

·        Phoroptor arm*

·        Foot rest* (either fixed or tip-up)

·        Arm rests (either fixed or tip-up*)

·        Chair sliding (13cm) forward – backwards ass’y*

·        Foot switch control for up/down movement of the chair*

·        Left-handed version*

* optional





Technical information

Voltage

~230V 50/60Hz

Total weight

210kg

Max height

181cm

Table height from the ground

From 82cm to 95cm (13cm lift)

Chair height from the ground

From 52cm to 67cm (15cm lift)

Chair rotation

360o

Overhead halogen lamp

12V 35W

Instruments power supply

1st instrument ~230V

2nd instrument ~230V, ~12V, ~6V

3rd instrument ~230V, ~12V adj., ~6V adj.









Reference: Description: Option: Unit Price: Quantity:
OMP6357 Elegance refraction stand N/A £3,995.00
