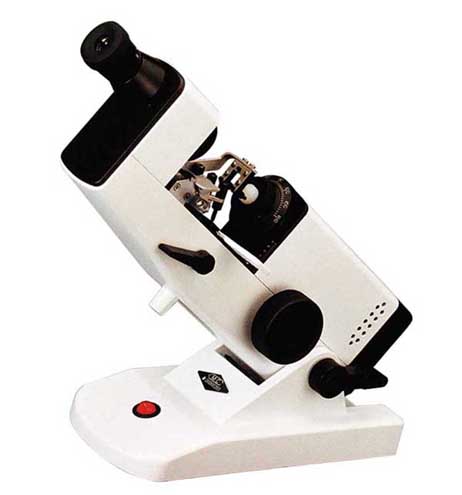

OM-100 Manual Lensmeter
£395.00
Reference: OMP1516
Thank you for visiting Optical Marketplace today. You are viewing an item that has been successfully sold on our site, and is no longer available. However, if you click any of the links on the left hand side of the page you will visit the live site and see our current listings.
If the item you are looking for is not advertised then please follow us on Twitter and be the first to know when it gets added to our catalogue.
Optical Marketplace - LM-100 Manual Lensmeter with built in prism compensator. Internal reading, target type, corona and cross hair
Specifications:
- Ranges of measurement: 0 to 25D Minimum: 0.125D graduation up to 5D 0.25D graduations over 5D to 25D
- Cylinder Axis Range: 0 ~180 step 1
- Prismatic Power Range:Prism diopter of Pattern A: at 1△ interval in the range of 0~5△Prism diopter of Pattern B: at 1△ interval in the range of 0~20△
- Prism base angle :at 50 intervals in the range of 0 ~180 degree
- Eyepiece Adjustment: 5D
- Measurand Lens Diameter: φ16 ~φ80mm
- Dimensions: 275mm(h)x130mm(w)x455mm(d)
- Weight: 5.6kg
- Lamp: 220V15W 110V15W
Price Includes:
- 1 year Guarantee
